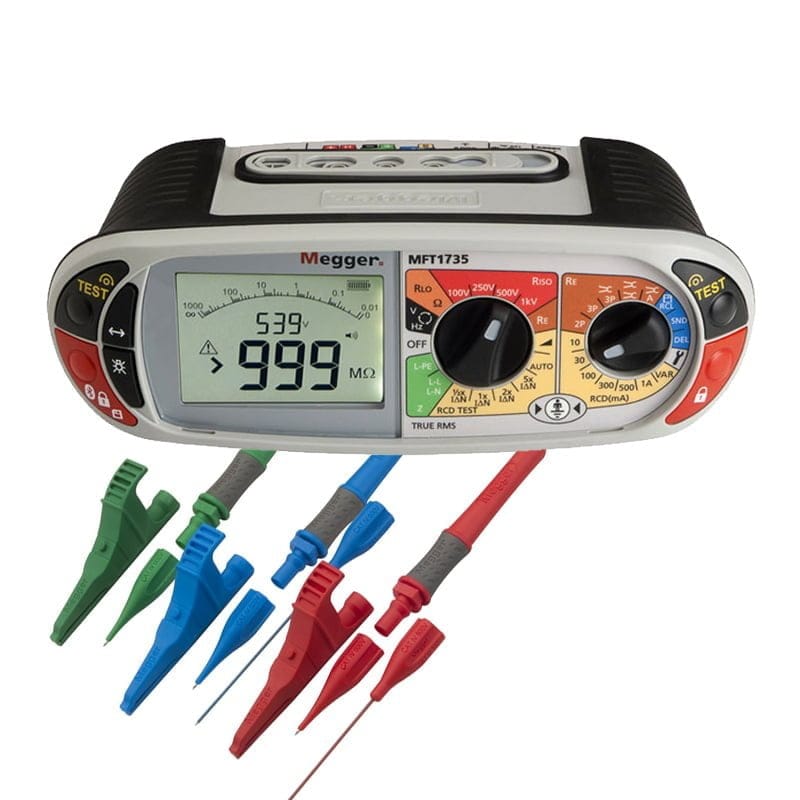

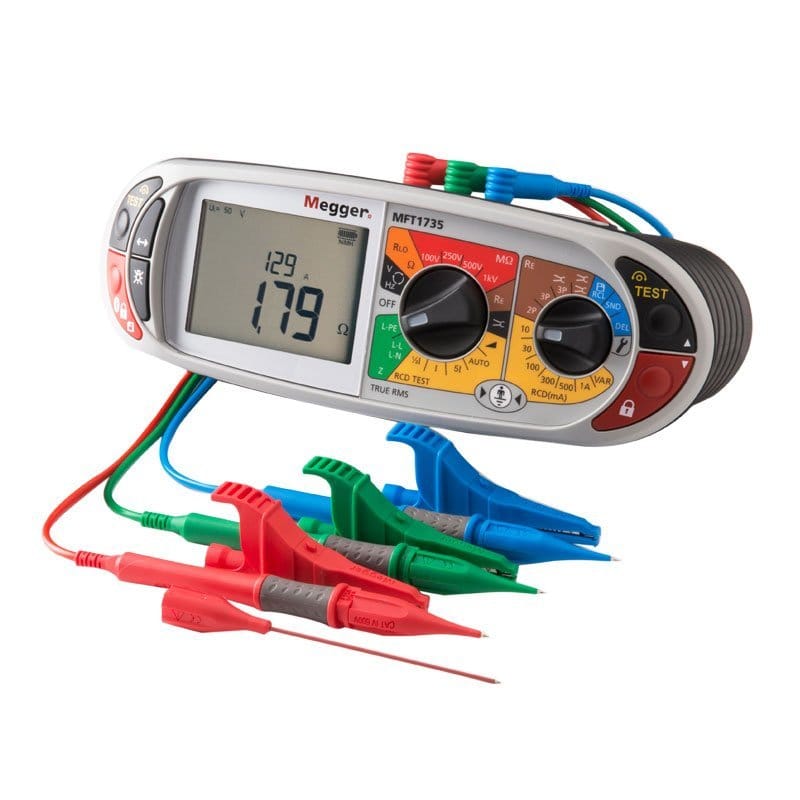

Megger MFT1735 Multifunction Tester

Megger MFT1735 Multifunction Tester

The Megger MFT1735 Multifunction Tester, a new entrant in the renowned MFT1700 series, is engineered for a wide range of electrical installation testing tasks. It effortlessly caters to the needs of domestic, commercial, and industrial settings and complies with both Part P testing applications and 17th Edition guidelines.

Enhancing the features of its predecessor, the MFT1730, the MFT1735 boasts TRMS AC/DC supply measurement and an automatic continuity test. It performs insulation resistance tests ranging from 100V to 1kV and offers both low and high current loop test options, including the unique 2-wire low current anti-trip test. For RCD testing, it covers a range from 10mA to 1000mA and includes RCD Ramp testing, as well as the capability to conduct B type RCD tests.

The MFT1735 stands out with its variety of earth testing options, such as 2 pole, 3 pole, ART (Attached Rod Technique), and Stakeless methods. These methods allow testing without disconnecting the utility earth supply, enhancing safety and eliminating the need for supply isolation, thus saving substantial costs in potential production downtime.

This tester is not just versatile in function but also in data management. It enables the storage of test results in a multi-layer memory and facilitates easy download through Bluetooth. However, the Megger Powersuite software is essential to utilize these download and Bluetooth transfer features.

The Megger MFT1735 has comprehensive earth testing capabilities that make it a game-changer in electrical installation testing, capable of assessing various systems including primary and secondary electrical earth, utility pole earth, lightning protection, and more. For ART testing, the Megger iClamp is necessary, and for Stakeless testing, both the iClamp and VClamp are required.

As a complete multifunction test solution, the MFT1735 comes with a 3-year manufacturer’s warranty and is supplied in a durable hard carry case, ensuring protection during transit.

Key Features

• Simple colour-coded test selection and large clear backlit display for ease of use
• Two and three wire non-trip loop testing for RCD protected circuits
• Internal memory and Bluetooth communications
• Type-B RCD and 3-phase RCD testing for industrial applications with no Earth
• 3-terminal earth test and stake less testing for spike resistance measurement**
• EN61010 CATIV safety ratings and tough
• IP54 case

Provides all the tests required to complete the necessary electrical certification for industrial, commercial and domestic fixed wiring installations, including:

• System voltage and frequency measurement (TRMS)
• Insulation test at 100 V*, 250 V, 500 V and 1000 V
  • Including input protection against live circuits up to 600 V even when insulation test is locked-on
• Continuity resistance at 200 mA or 15 mA
  • Automatic – no need to press TEST so leaving both hands free to hold probes.
• Resistance range up to 100 kΩ
  • With fast continuity buzzer and selectable thresholds
• Non-trip loop test
  • Earth loop test
  • 2 and 3 wire non-trip range
  • 2 wire Hi current including phase to phase
• Prospective fault current measurement
  • Up to 20 kA
• RCD testing including:
  • Type AC, A, S, B* and programmable RCDs
  • 1/2 x I, 1 x I and 5 x I
  • 3-phase RCDs
  • Fast ramp test
  • Auto-test routine
  • Fault (Touch) voltage display
• Earth testing:
  • 2-pole
  • 3-pole
  • ART
  • Stakeless techniques

What’s Included

• MFT1735 Multifunction Tester (1003-319)
• Printed Quickstart Guide
• Full User Guide on CD
• Switched Probe SP5 (1001-878)
• Neck Strap – Megger embroidered (2001-509)
• 3-wire lead set with prods and clips (1001-991)
• UK mains lead SIA10 (6220-810)
• Battery Charger (2001-697)
• Earth Spike Test Kit (1001-810)
