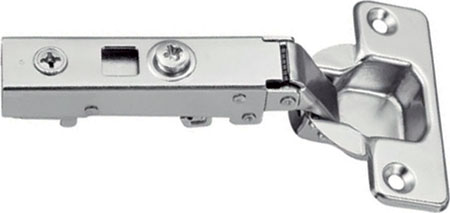

HAFELE 311.60.525 Concealed Hinge 110deg 48/6 Smuso Overlay (HINGE)

Metalla SM Concealed hinge 110deg, with soft closing mechanism, straight hinge arm
Opening angle 110deg
Automatic closing spring
Diam 35 mm cup
For 14 – 22 mm door thickness
Integrated soft close
Screw fixing or dowel fixing cup
Smuso Quick fixing arm
Nickel-plated steel

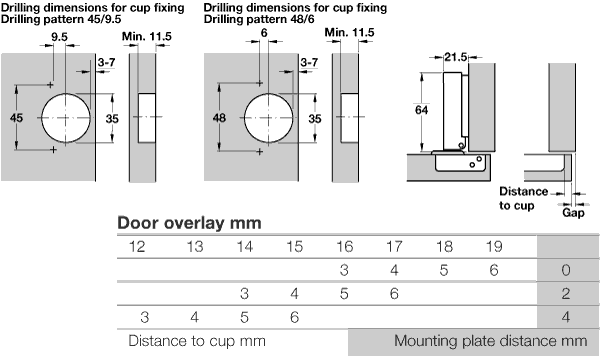

Note: Dimensions and gap specifications in drawings and tables are calculated using factory settings and for mounting plate distance 0 mm
Mounting plates for these SM Quick fixing hinges are shown in Related Products

This item is available whilst stocks last. Please contact us for availability of additional stock.
